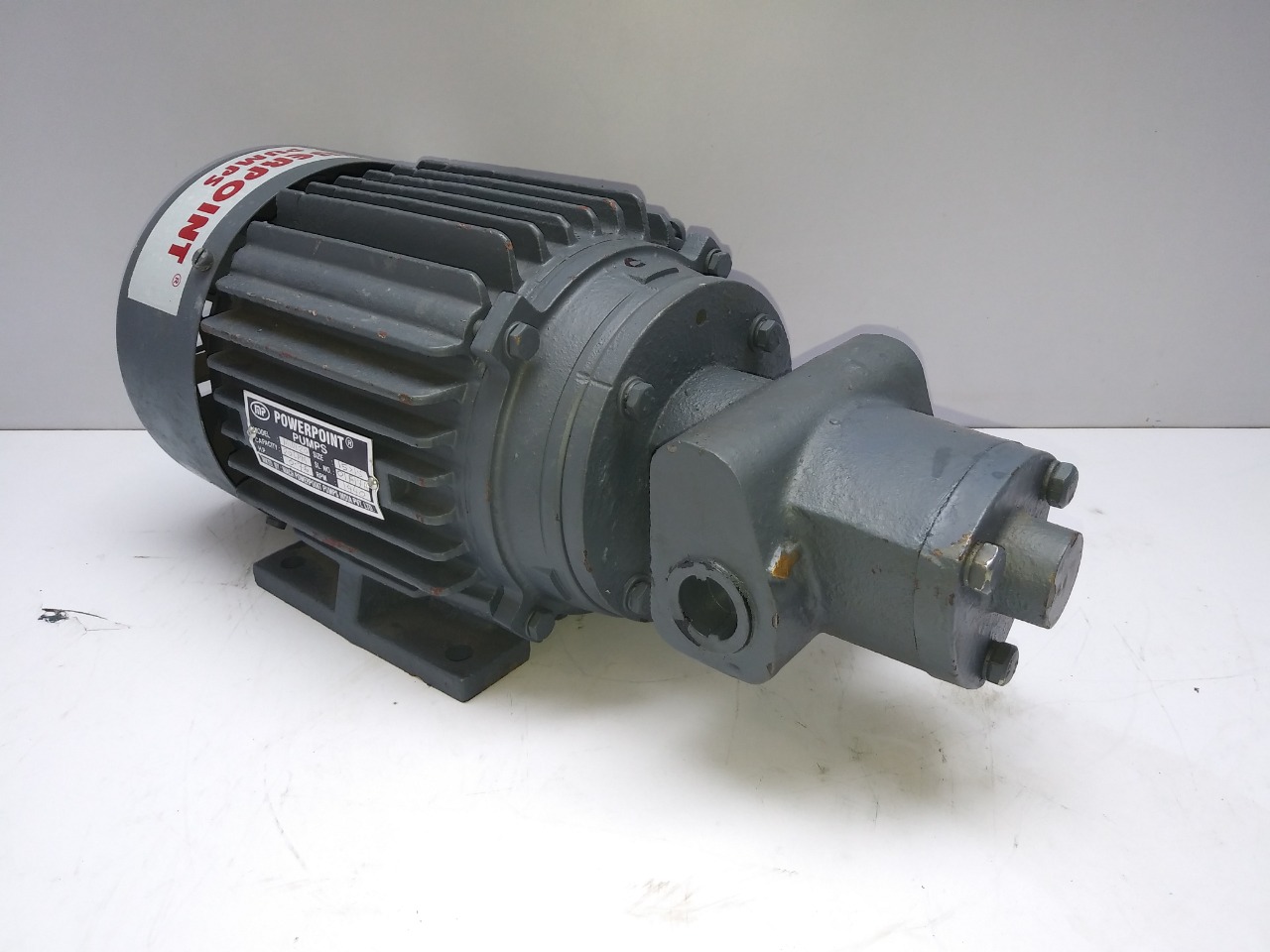

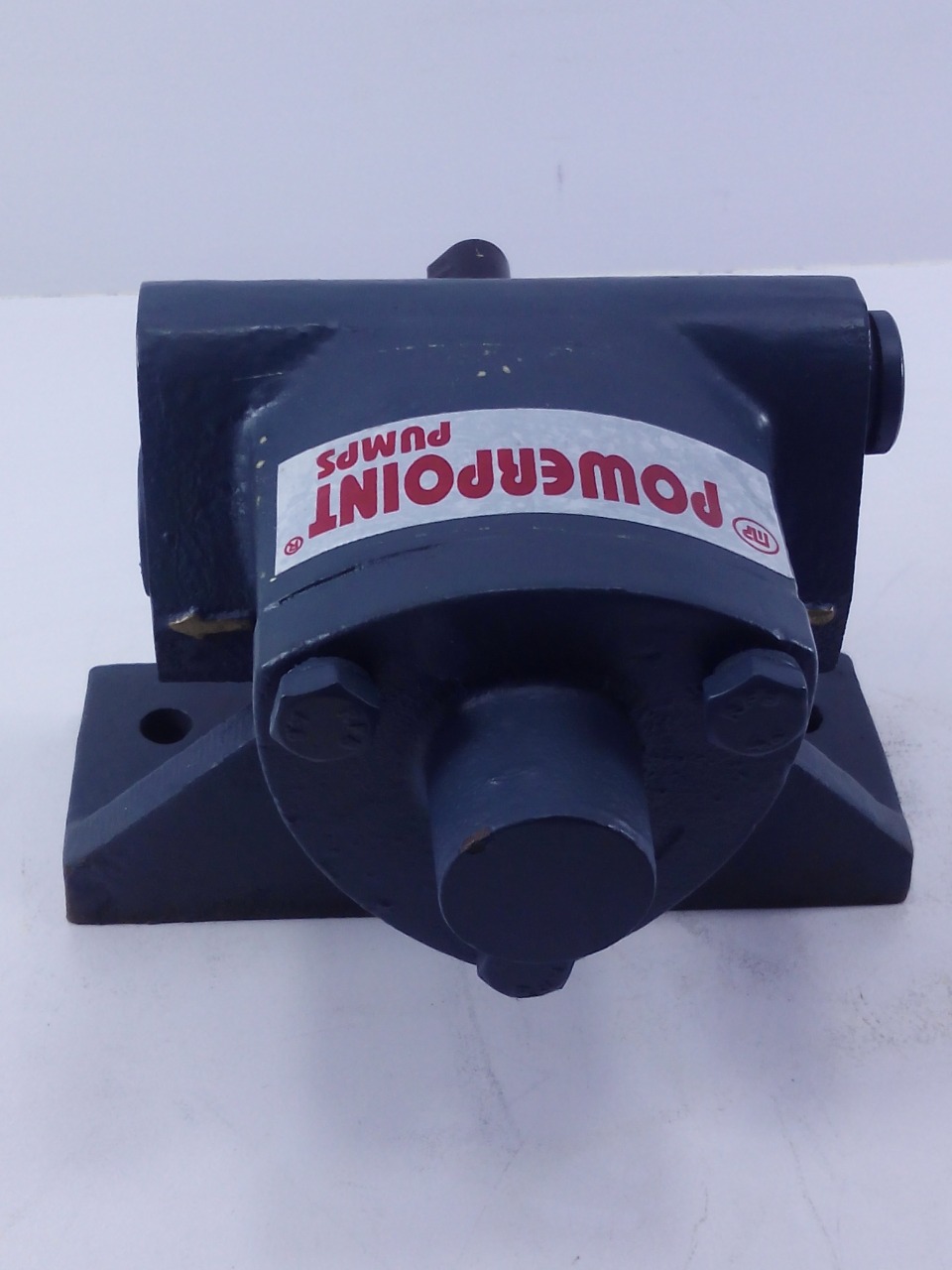

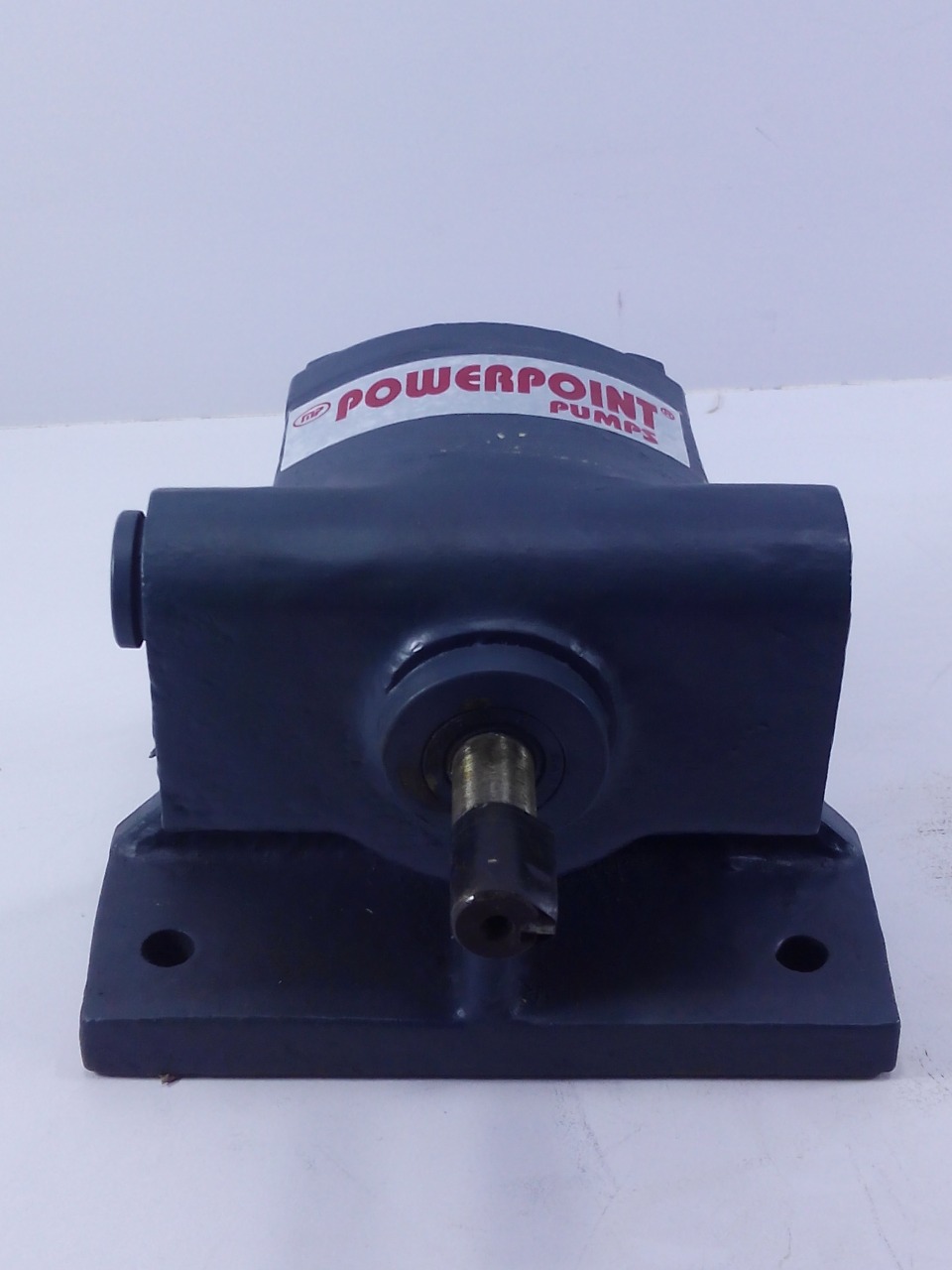

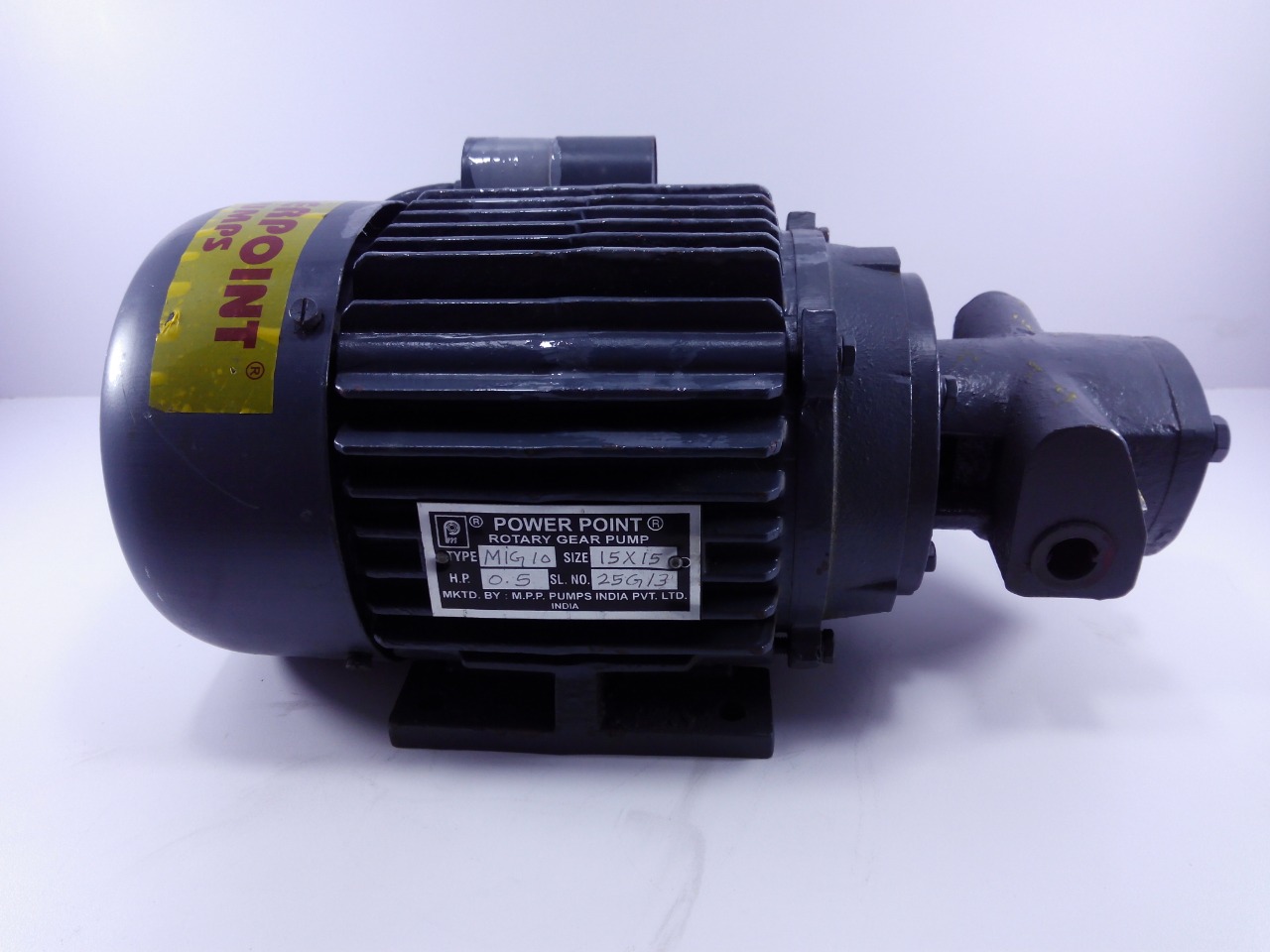

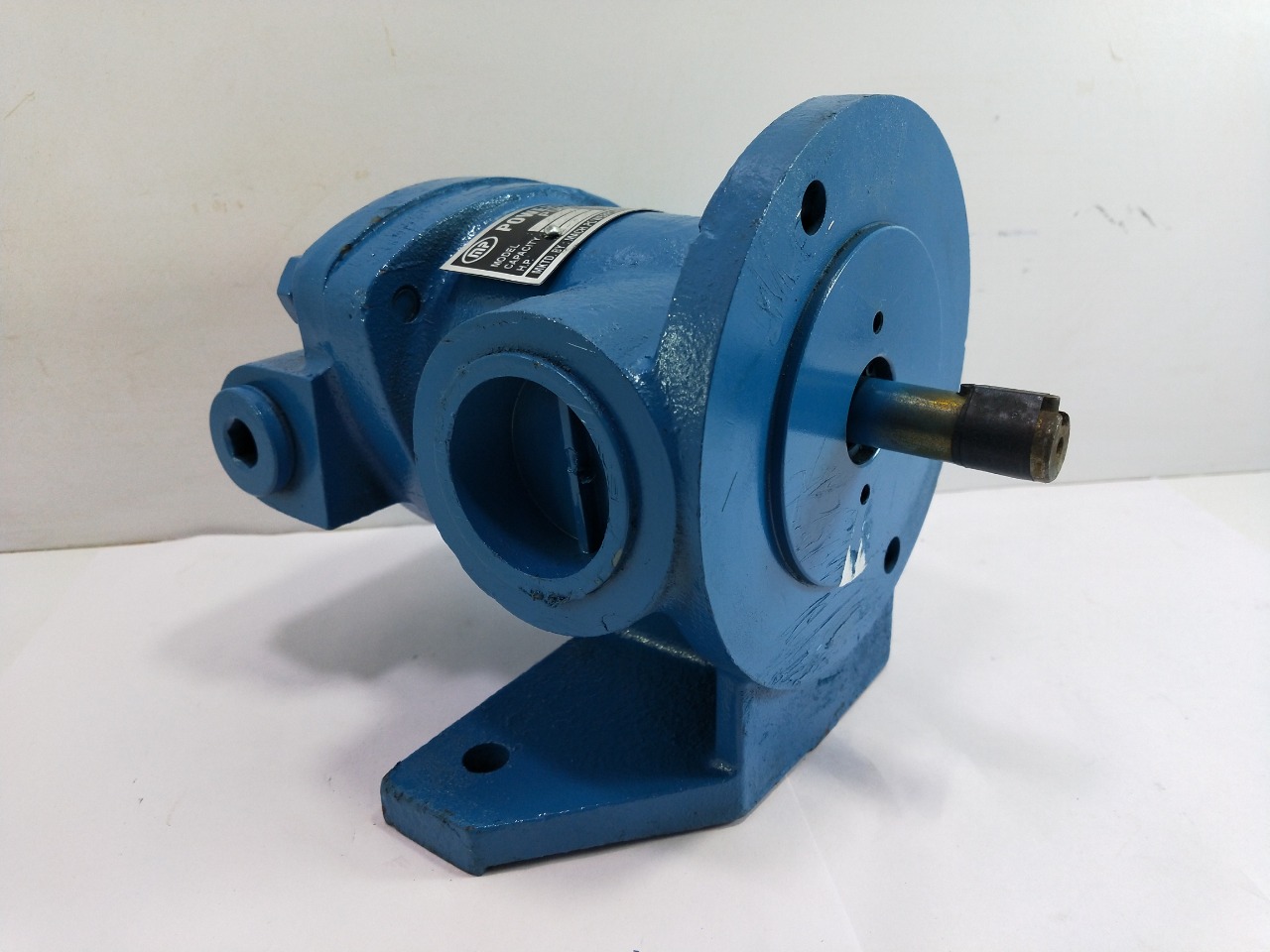

Internal Gear Pumps
Category: GEAR PUMPS
- Home
- Internal Gear Pumps
Product Details
| MODEL | H.P | CAPACITY(LPM) | Max Pre(Kg/cm2) | Port Size(S/D) | RPM |
| MIG-2.5/0.25(T.P) | 0.25 | 2.5 | 4 | 10 x 10 | 1440 |
| MIG-10A(SP) | 0.50 | 10 | 6 | 15 x 15 | 1440 |
| MIG-10B(TP) | 0.50 | 10 | 6 | 15 x 15 | 1440 |
| MIG-10C/0.75(T.P) | 0.75 | 10 | 10 | 15 x 15 | 1440 |
| MIG-15A(SP) | 0.50 | 15 | 4 | 15 x 15 | 1440 |
| MIG-15B(TP) | 0.50 | 15 | 4 | 15 x 15 | 1440 |
| MIG-15C/0.75(T.P) | 0.75 | 15 | 8 | 15 x 15 | 1440 |
| MIG-20A/0.50(S.P) | 0.50 | 20 | 2 | 15 x 15 | 1440 |
| MIG-20B/0.75(T.P) | 0.75 | 20 | 6 | 15 x 15 | 1440 |
| MIG-20C/1.00(T.P) | 1.00 | 20 | 8 | 15 x 15 | 1440 |
| MIG-40A/1.00(S.P) | 1.00 | 40 | 6 | 25 x25 | 1440 |
| MIG-40B/1.00(T.P) | 1.00 | 40 | 6 | 25 x25 | 1440 |
| MIG-40C/1.50(T.P) | 1.50 | 40 | 8 | 25 x25 | 1440 |
| MIG-40D/2.00(T.P) | 2.00 | 40 | 10 | 25 x25 | 1440 |
| MIG-80A/2.00(T.P) | 2.00 | 80 | 6 | 40 x 40 | 1440 |
| MIG-80A/3.00(S.P) | 3.00 | 80 | 10 | 40 x 40 | 1440 |
| MIG-80B/3.00(T.P) | 3.00 | 80 | 10 | 40 x 40 | 1440 |
| MIG-80D/5.00(T.P | 5.00 | 80 | 12 | 40 x 40 | 1440 |
