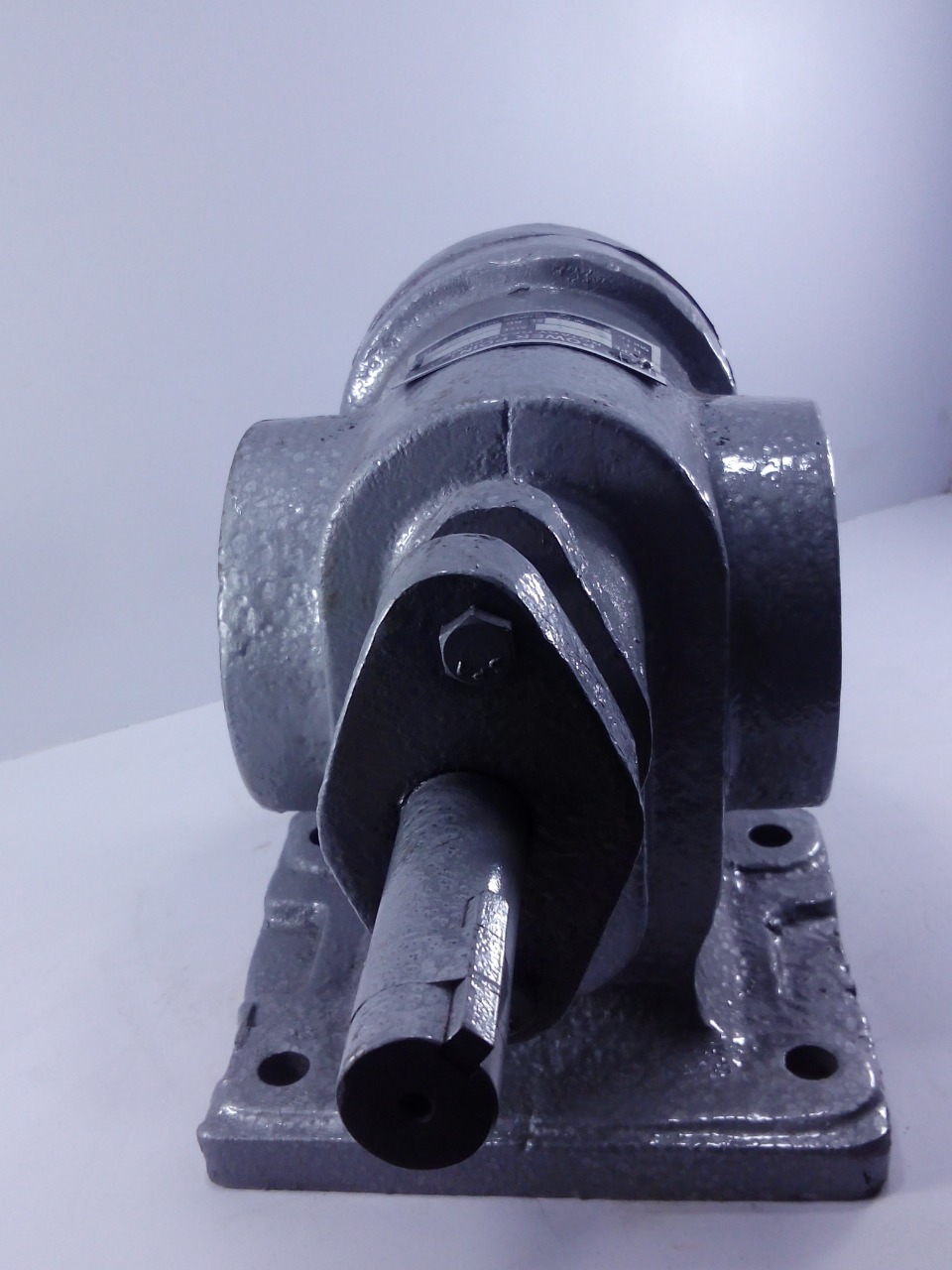

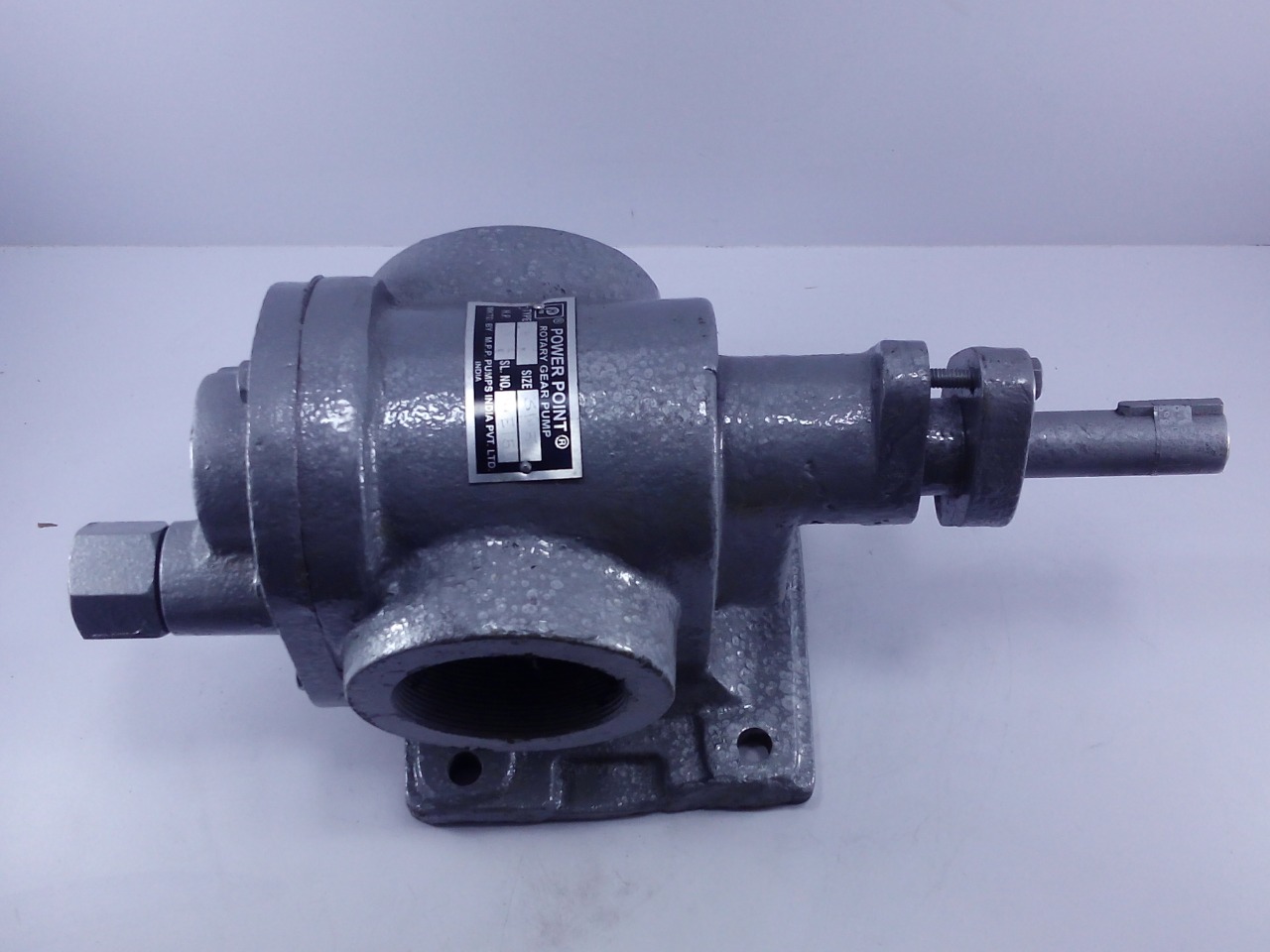

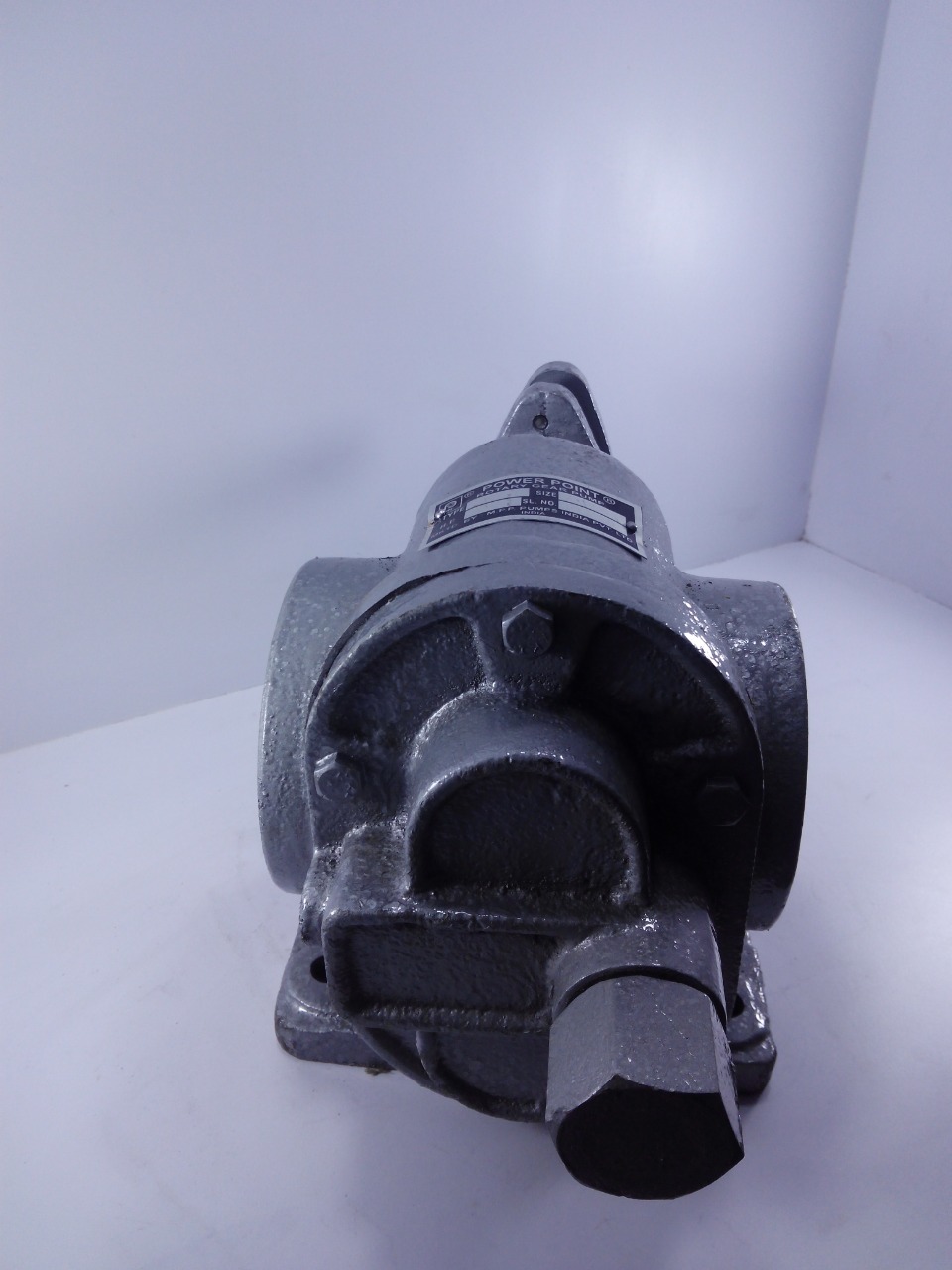

Gear Pump single helical PG series
Category: GEAR PUMPS
- Home
- Gear Pump single helical PG series
FEATURES :
- Single helical gears
- Hardened & ground shaft
- Max. capacity -500 Lpm
- Max. pressure – 10 kg/ cm2
- Max temperature – 80°c
- Modified version for high temp up to – 200°c
- Modified version for molasses and vacuum Application
- Higher aesthetic valve
HORSE POWER AND CAPACITY CHART :
| Pump Model |
Inlet Outlet Size |
Capacity
|
Recommended Motor HP Differential Pressure Of “X” kg/cm2 With 1500 SSSU Volscosity & Specific Gravity @0.8g/CC
|
WT.Of Bare Shaft Pump In KG |
| LPM |
US GPM |
M3/hr |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
| PG-050 |
1/2″*1/2″ |
20 |
5.30 |
1.20 |
0.50 |
0.75 |
2.80 |
| PG-075 |
3/4″*3/4″ |
30 |
7.92 |
1.80 |
0.50 |
0.75 |
1.00 |
4.50 |
| PG-100 |
1″*1″ |
50 |
13.20 |
3.00 |
0.50 |
0.75 |
1.00 |
1.50 |
6.20 |
| PG-125 |
1 1/4″*1 1/4″ |
75 |
19.80 |
4.50 |
1.00 |
1.50 |
2.00 |
3.00 |
8.50 |
| PG-150 |
1 1/2″*1 1/2″ |
110 |
29 |
6.60 |
1.50 |
2.00 |
3.00 |
5.00 |
10.50 |
| PG-200 |
2″*2″ |
225 |
59.40 |
13.50 |
3.00 |
5.00 |
7.50 |
18.00 |
| PG-250 |
2 1/2″*2 1/2″ |
350 |
92.50 |
21.00 |
5.00 |
7.50 |
10.00 |
12.50 |
27.30 |
| PG-300 |
3″*3″ |
500 |
131.60 |
30.00 |
10.00 |
12.50 |
15.00 |
20.50 |
37.00 |
DIMENSIONS :
| SR NO | PART | MOC | VISCOSITY | SPEED | CAPACITY |
| 1 | CASING | CI GR 20 | UP TO 500CST | 1500 RPM | 100% |
| 2 | R.V. COVER | CI GR 20 | 500-1500 CST | 1000 RPM | 66% |
| 3 | GLAND COVER | CI GR 20 | 1500-5000 CST | 750 RPM | 50% |
| 4 | SHAFTS | EN – 9- H & G | 5000-15000 CST | 500 RPM | 33% |
| 5 | GEARS | EN-8 | 15000-30000 CST | 380 RPM | 25% |
| 6 | GLAND SEAL | OIL SEAL | 30000-50000 CST | 300 RPM | 20% |
| 7 | SHAFT BRG | SINTREAD BRONZE BUSH | 50000-100000 CST | 200 RPM | 13% |
| 8 | R.V. PLUG | BRASS / M.S/ ALUMINUM | 100000-200000 CST | 150 RPM | 10% |
